5 Boîte à café emballée: Construire un plus petit Retail Pack 5 sachets.

Un 5 La boîte à café contenant cinq portions de café emballées séparément dans une seule, Petit carton. Le nombre de points est bon pour l’échantillonner, voyager, short promotions and first purchases as it gives the buyer over a single sample without necessarily committing to purchase a large pack.The carton is yet to be developed as a working package. There should be five filled sachets that can be loaded without snagging, can be transported without becoming disorganized and emerge without being damaged. Such demands ought to inform the structure before artwork begins.

Accept the Product Behind the Count.

The keyword would suit various products, and thus the specification should mention that the box includes five portions of single-serve coffee. It does not mean a bundle of five beverage dispensers or five individual cartons.

Determine the brewing format, dose of coffee, filler and sachet type. An instant coffee pouch and a steeped coffee bag can be sold in five-pack, but they do not shape up. A hanging-ear filter can be sold in five-packs as well, but they do not form the same shape when filled.

Assemble the Box Using Production Sachests.

The dimensions of flat packaging are just an initial reference. The amount of space that is actually occupied by the finished portion will depend on coffee, Air piégé, filter folds and sealed edges.

To demonstrate normal variation, take the collection of sufficient production-like samples. Take five of them and place them in the desired direction of packing and see where the stack is going to be the widest, tallest and deepest.

Take the Largest Normal Sample.

Do not make the carton the size of the smallest sachet in the pack. Take as large a sample as will not be regarded as a loading failure by the mere nature of variations that may occur.

Mark Sensitive Areas

Record tear notch, top seal, and date-code area and any point of a folded filter forming pressure. These points should not be rubbed by the carton when it is being packed or opened.

Choose What the Five Portions Are Going to sit on.

The internal dimensions and experience to the customer are modified by the arrangement. Assess the entire group as opposed to making a judgment about a single sachet.

Standing in One Row

An upright row design a carton that is narrow and provide a practical height to the front panel. Retail shelves are often convenient when using it and the customer can take off a sachet at a time.

Lying in Flat Stack.

A flat stack produces a flatter, broader pack. It is effective provided that the layers are even and the sachets are thin but that the lower sections are inspected against pressure caused by layers on the top.

The Sealed Edges have been alternated.

Using the thickness of a seal different than the other can make the stack balanced by use of alternating the sachets. This arrangement can only be applied, when operators are able to repeat it reliably at normal speed.

Careful Set internal clearance.

A convenient five-pack is not loose or pressed. Excessive space allows the sachets to slide around, and make the box look half-filled. Not enough space makes boards bend, pulls seals and slows down loading.

Add clearance to be inserted and removed, and test the result with a validation on the result using more than one set of filled samples. The last dieline must register usable internal space not just based on a projection of exterior measurements.

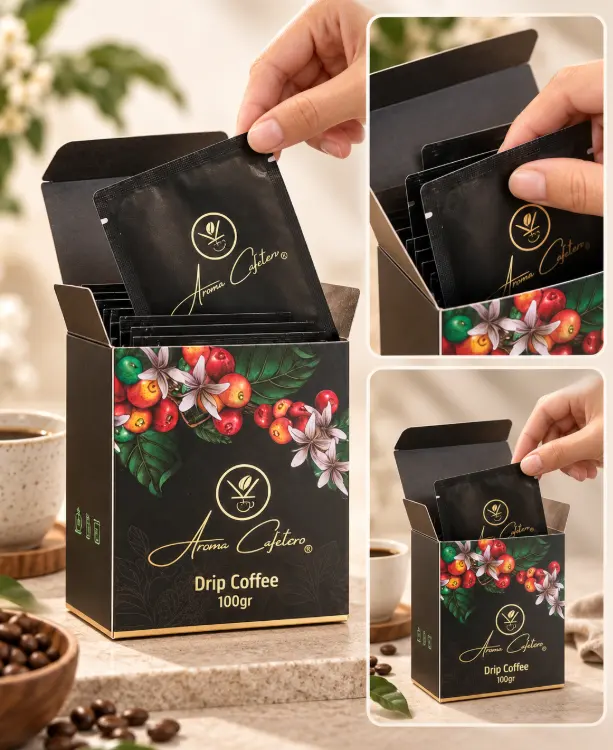

Check the First Sachet

Pulling the others forward as a result of the first portion coming out, should not occur. A little access notch can assist, but must not undermine the panel, or leave excessive of the sachet in view.

Vérifié: Last Sachet.

Once four portions are taken off, the remaining sachet ought to be easily accessible. Neither should it fall down in a deep hollow carton nor be caught behind an interior flap.

Retain the Structure Proportionate.

Five lightweight sachets normally do not require a heavy presentation box. A folding carton is easy to roll, can print, flat ship and offers maximal protection without any unnecessary content.

Tuck-End Cartons

Tuck-end carton can be easily loaded manually. Try the opening flap repeatedly as the customer can open the box 5 times.

Auto-Bottom Cartons

Higher packing volumes have the potential of reducing assembly time in an auto-bottom structure. Its additional conversion cost should be compared with actual labor savings rather than selected only for appearance.

Add an Insert Only because of a Reason.

Five sachets in a carton can be many times fitted successfully without an insert when this carton is of proper size. This makes the pack easy and minimizes assembly procedures.

Separating Five Varieties

A light paperboard divider can be used, in cases when not the order, but the origin or flavor must be different in each sachet. The divider should not obscure identification or render it hard to access.

Controlling Unavoidable Movement

An insert can also be used when sachet shapes differ and the outer box cannot be reduced further. It must address quantifiable movement rather than be ornamentation.

Take a Fit to Sales Job.

A five-count carton is typically a first-time shop. It sells itself through convenience, variety and affordable cost and not economy in bulk.

Trial Pack

One trial pack can present either one of the coffee types or one way of brewing. Reading instructions on how to prepare the product is important since the customer might find themselves on the first time using the item.

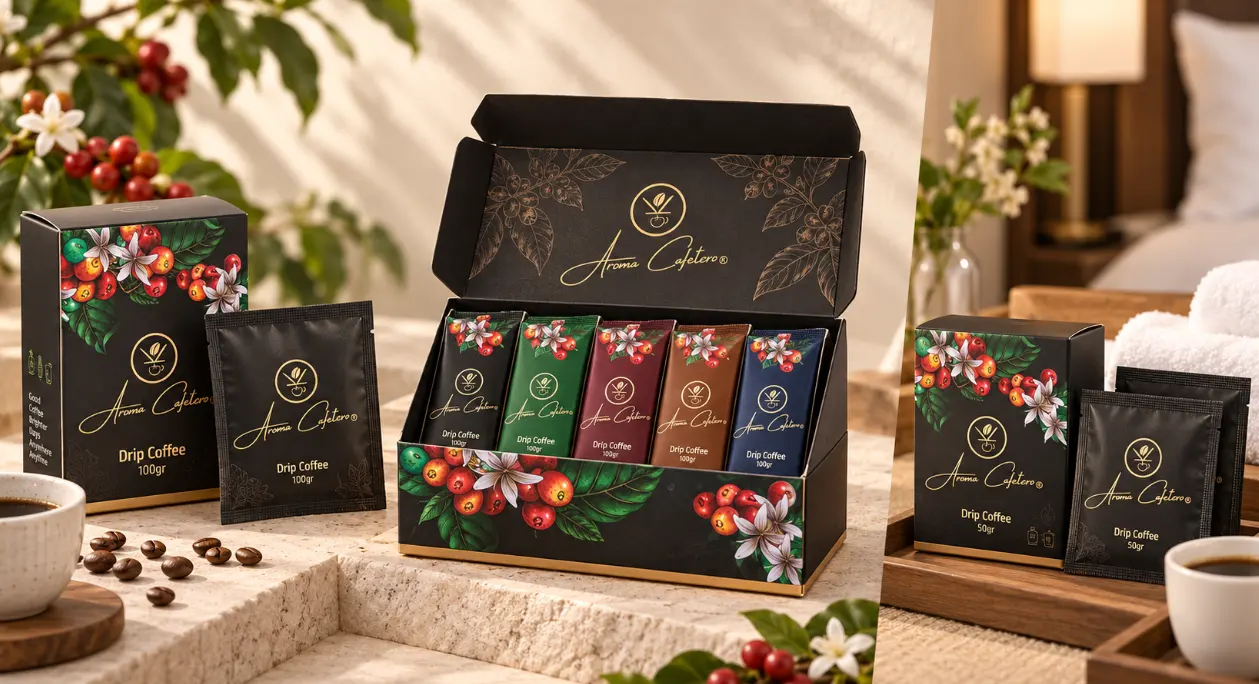

Coffee Flight

This can be in the form of five sachets, which correspond to five origins, roasts or flavor profiles. Carton copy, packing records, sachet artwork has to be in agreement so that the promised assortment could end up in the hands of the customer.

Hospitality Pack

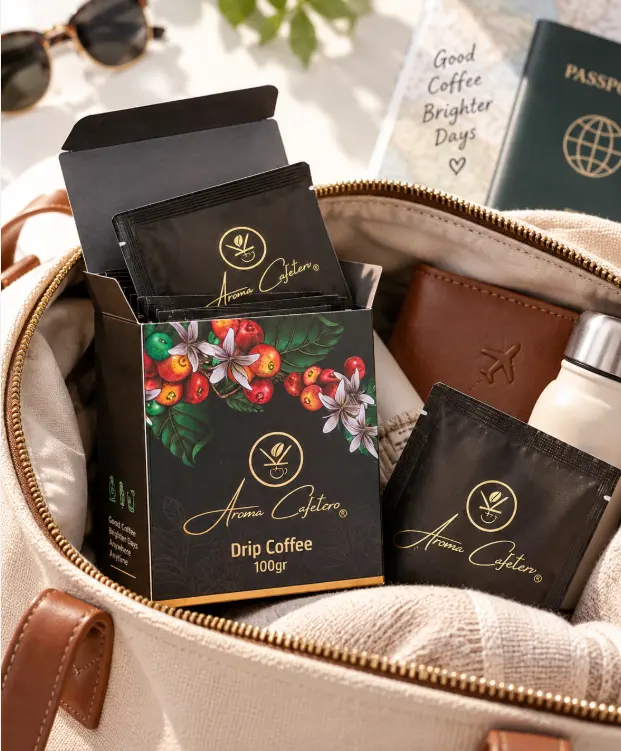

Hotels and travel programs might choose the miniaturized carton that can be easily stored and is able to identify the product fast. Rapid and speedy handling tends to be worth more than a lengthy introductory sequence.

Use the Carton Surface With Discipline.

A box is a small area. Attach importance to coffee identity, Quantité, form of brewing, necessary instructions, barcode and necessary labeling. Depending on ornamental copying, practical information should not be hard to locate.

Place the barcode on a flat surface and not on folds. Make sure that there is no interruption of directions after putting up the flaps, either top or bottom.

Test Packing Pre-Approved Artwork.

Get an operator to stack and fill some cartons at regular speed. Look out of sachets getting hooked on flaps, stacks falling over, panels bending or the fifth section getting hard to fit.

Next put the retail boxes in the shipping case to be used. It is possible that even a small carton that fits on the table can move, bump or squash when a group of them is travelling.

Inspection of the Box Since Hands-on.

Test corners, Fermetures, printed surfaces and sachet seals following a simple transport simulation. Open the box as a consumer would and make sure all portions are still usable.

Freeze the Specification of Repeat Orders.

Note approvals of a sachet, Quantité, Ordre, carton substance, fastening, dieline changer, and pack directive. The current orders must be matched with this set of controls and not with an old quote.

Conclusion

An efficient 5 pack coffee box is built on the five actual portions and one reusable-packing procedure. The space is created by filled dimensions; the shape by arrangement control; and the opening by determining whether the pack is convenient after the initial use.

The solution is often an easy folding carton. Only in case of obvious necessity according to testing, inserts or even more complex structures should be introduced.
